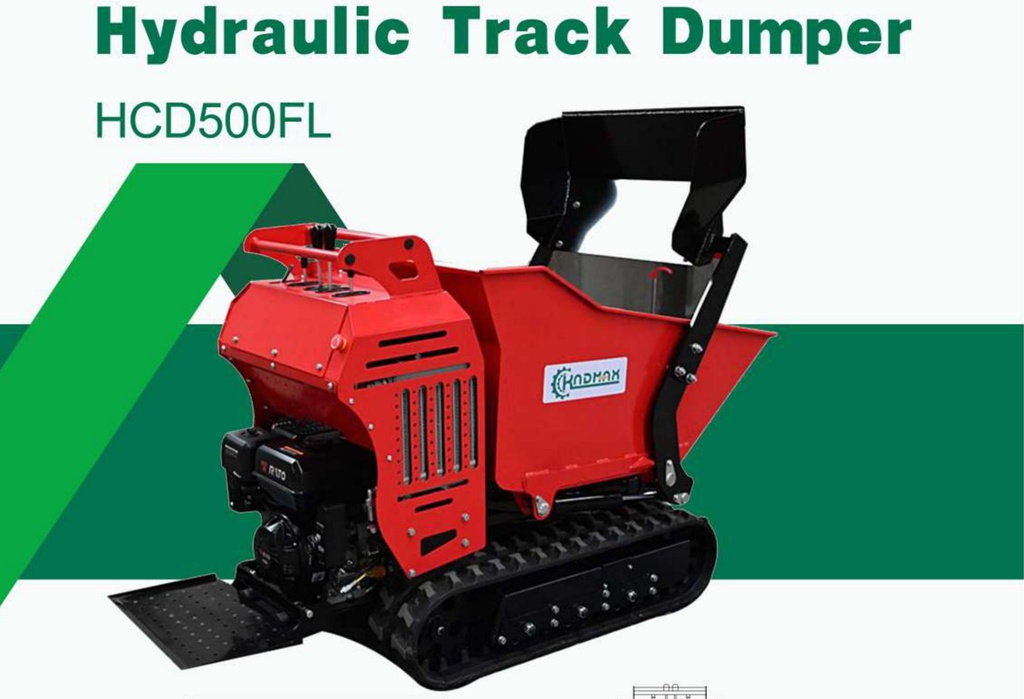

KNDMAX HCD500FL - Hydraulic Tracked Dumper with Bucket
A tracked mini dumper powered by a 10HP LONCIN petrol engine, built for moving bulk materials on soft, sloped, or sensitive ground where wheeled machines struggle. The rubber tracks keep ground pressure low, and the hydraulic loader bucket lets it self-load material before hydraulically tipping the main bin to unload.
Features
- 10HP LONCIN gasoline engine, rubber tracks for low ground pressure
- Hydraulic tipping bucket plus a hydraulic loader bucket for self-loading and unloading
- 500 kg load capacity, 0.25 m3 bucket volume
- Max gradeability 20 degrees - built for slopes and soft or uneven ground
- CE certified (manufacturer specification)
Specifications
| Engine | 10HP, single cylinder, 4-stroke, air-cooled, gasoline (LONCIN) |
| Load capacity | 500 kg |
| Bucket capacity | 0.25 m3 |
| External dimensions | 1890 x 730 x 1500 mm |
| Max travel speed | 0-3.5 km/h |
| Max gradeability | 20 degrees |
| Hydraulic pressure | 20 MPa |
| Working type | Self loading and unloading, hydraulic tipping |
| Certification | CE |
| Weight | 424 kg |
| Stock | Special order item, currently approx. 2-3 months lead time from order. |
| Delivery | Delivered unassembled in a wooden crate (like our other machines). Assembly available for 2,500 kr if picked up at our workshop in Svedala. |
Frequently asked questions
How much can the HCD500FL carry?
Up to 500 kg, with a 0.25 m3 bucket volume, according to the manufacturer.
Why tracks instead of wheels?
Rubber tracks spread the machine's weight over a larger area, so it puts less pressure on soft ground, lawns, or slopes than a wheeled dumper of the same capacity.
Does it load itself?
Yes, the hydraulic loader bucket at the front can scoop and load material, in addition to the main bin's hydraulic tipping for unloading.
What slopes can it handle?
Up to 20 degrees gradeability, according to the manufacturer.
Is it in stock?
No, this is a special order item. Current lead time is approximately 2-3 months from order.
Does it arrive assembled?
No, like our other machines it is delivered unassembled in a wooden crate. We can assemble it for you for 2,500 kr if you pick it up at our workshop in Svedala.
