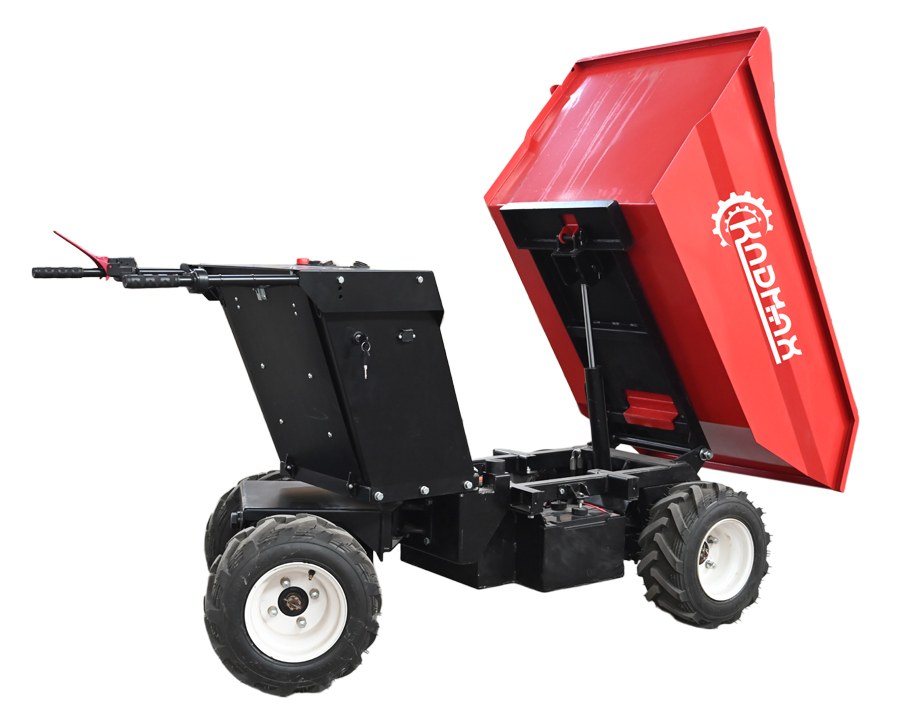

KNDMAX ED600H - Electric 4WD Hydraulic Dumper 600kg
A battery-powered mini dumper with four-wheel drive and articulated steering, built for moving heavier loads around gardens, golf courses, and construction sites without noise or exhaust fumes. The articulated chassis lets it turn in tight spaces while keeping all four wheels driven for traction on soft or uneven ground, and the hydraulic tipping bin empties with full control.
Features
- Electric four-wheel drive, articulated steering for tight turns
- 600 kg load capacity, hydraulic tipping
- 2 x 750W 48V brushless DC motors, 1500W total power
- Zero emissions, quiet operation - works indoors and in noise-sensitive areas
- CE certified (manufacturer specification)
Specifications
| Motor | 2 x 750W, 48V brushless DC, 1500W total |
| Load capacity | 600 kg |
| Drive system | Four-wheel drive, articulated steering |
| Braking system | Electromagnetic |
| Dumping method | Hydraulic |
| Max speed | 0-6.0 km/h (medium 0-4.0 km/h, low 0-2.0 km/h, reverse 0-2.0 km/h) |
| Max climbing angle | 30 degrees |
| Net weight | 266.5 kg |
| External dimensions | 2051 x 770 x 1170 mm |
| Continuous operation time | 4-6 hours |
| Charging time | To 80%: 6 hours. To 100%: 8 hours (110-240V smart charger) |
| Certification | CE |
| Stock | Special order item, currently approx. 2-3 months lead time from order. |
| Delivery | Delivered unassembled in a wooden crate (like our other machines). Assembly available for 2,500 kr if picked up at our workshop in Svedala. |
Frequently asked questions
How much can the ED600H carry?
Up to 600 kg, according to the manufacturer.
Why four-wheel drive and articulated steering?
All four wheels are driven for traction on soft or uneven ground, and the articulated chassis (the machine bends in the middle to steer) lets it turn in tighter spaces than a machine that steers only its front wheels.
How long does the battery last?
According to the manufacturer, about 4-6 hours of continuous operation, with charging taking 6 hours to 80% and 8 hours to full.
Is it quiet enough for noise-sensitive areas?
Yes, it runs on electric motors with zero exhaust emissions, which makes it suitable for indoor use and noise-sensitive environments where a petrol machine would not be allowed.
Is it in stock?
No, this is a special order item. Current lead time is approximately 2-3 months from order.
Does it arrive assembled?
No, like our other machines it is delivered unassembled in a wooden crate. We can assemble it for you for 2,500 kr if you pick it up at our workshop in Svedala.
