NEW IN THE FJD TRION FAMILY
FJD Trion C1
From room to floor plan in minutes.

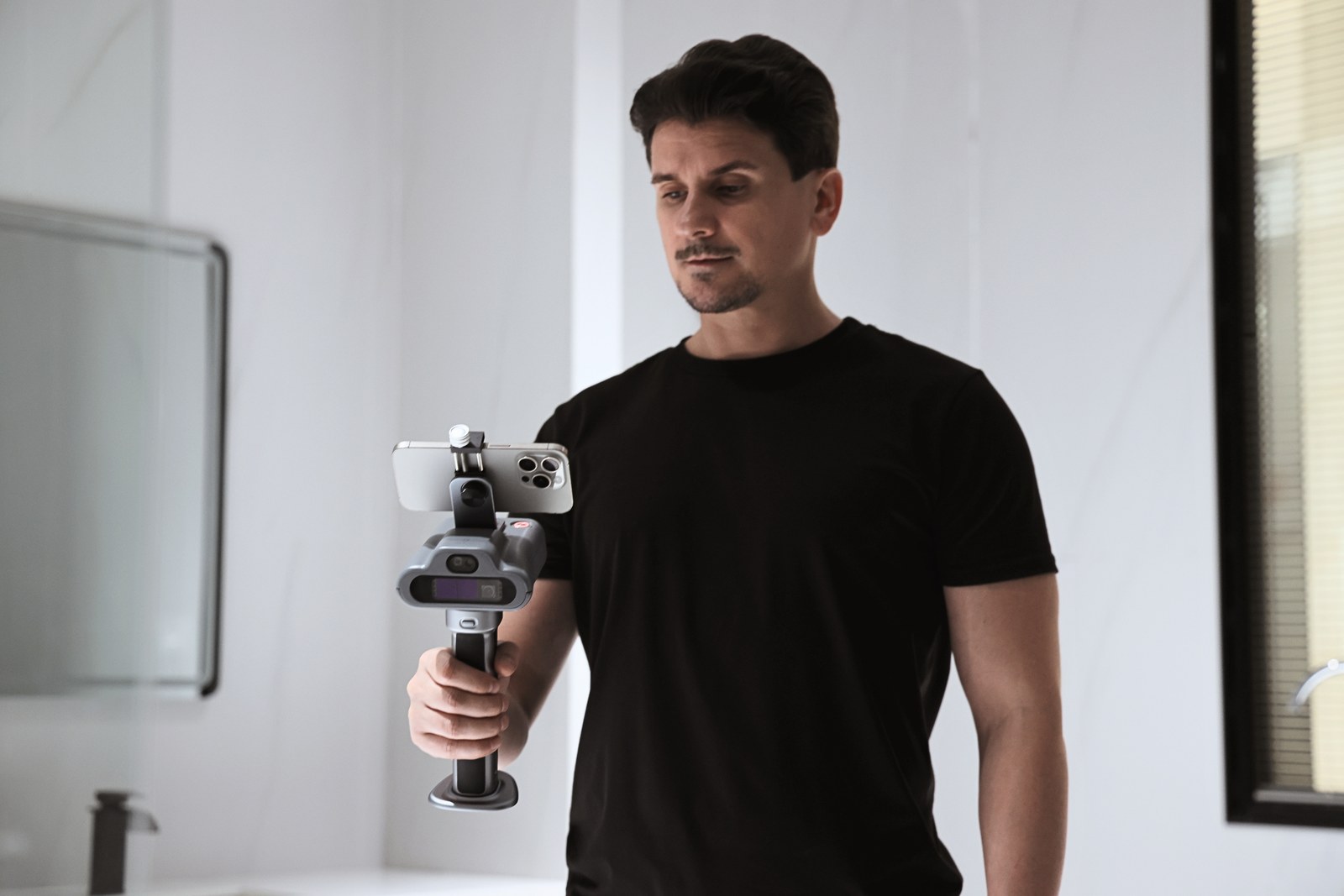

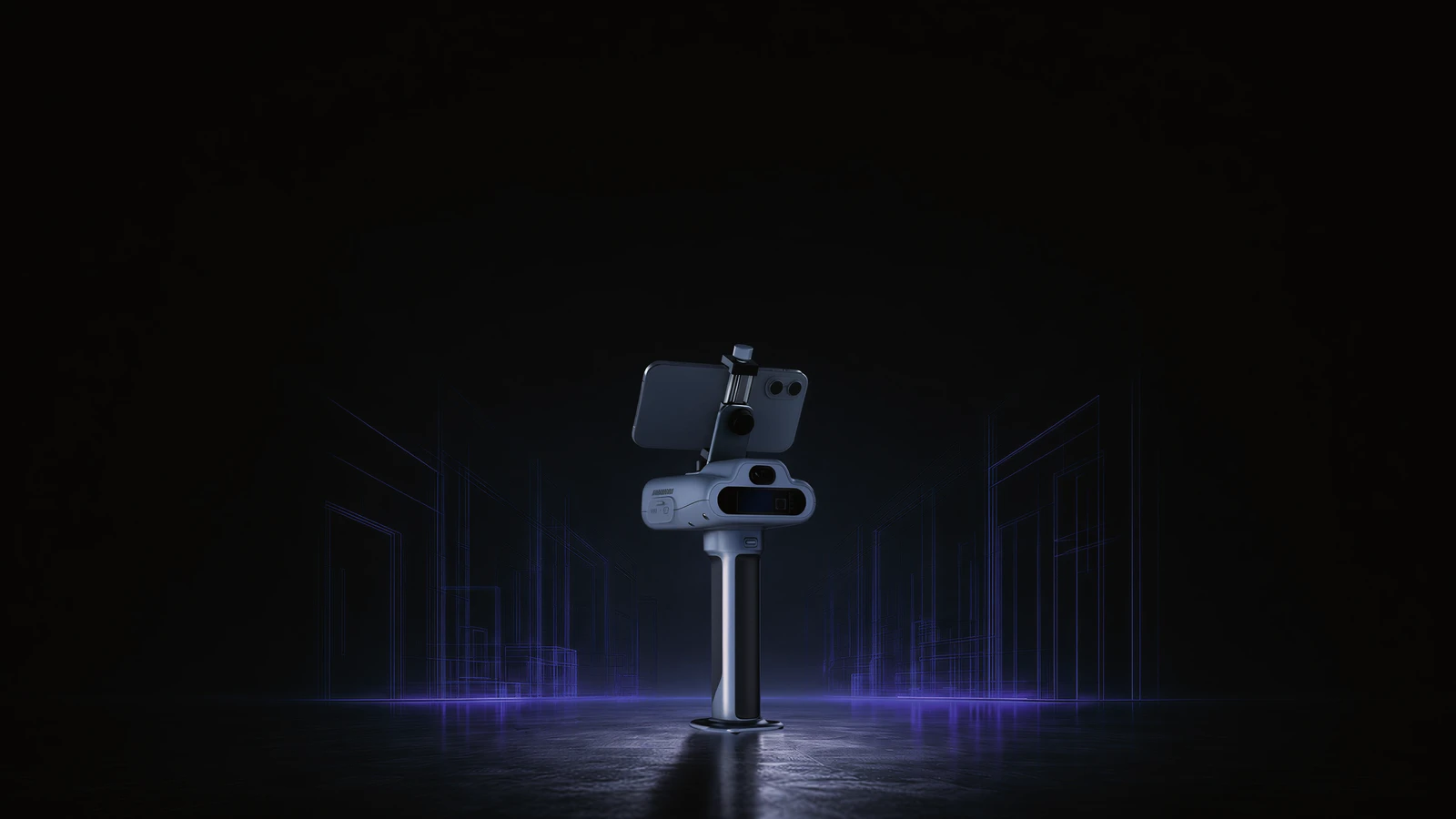

Scan the space, confirm the dimensions with a laser and leave with an editable DXF floor plan. C1 is the easiest way into 3D scanning: a 950 g handheld LiDAR scanner for rooms, apartments, offices and retail spaces.
200 m²
in as little as 3 minutes
±3 mm
laser-measured dimensions
5 h
battery life, charges in 2 h
950 g
one hand free
According to FJDynamics' product sheet for FJD Trion C1.
Measure once. Draw right away. Skip the return visit.
Interior designers, estate agents and furniture suppliers share the same first step in every job: someone has to measure the space. C1 turns that into a few minutes – and gives you a file that goes straight into your drawing software.
* According to FJDynamics' internal tests compared with conventional measuring and CAD drafting. Results vary with project complexity and deliverables.

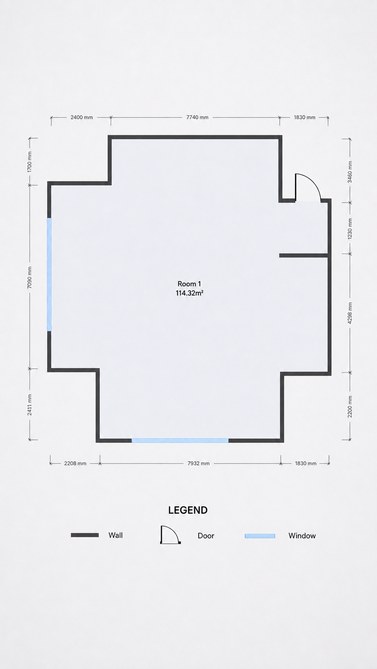

Three files from every visit

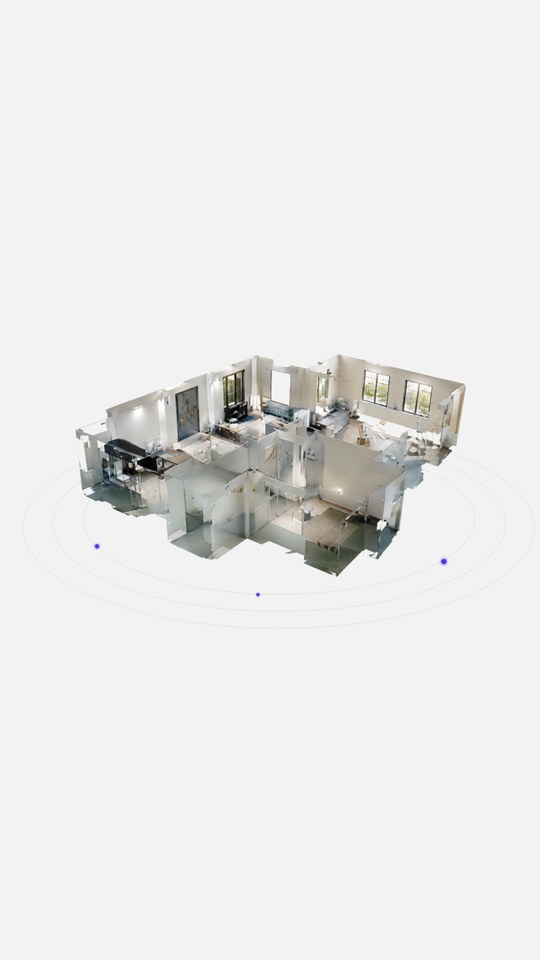

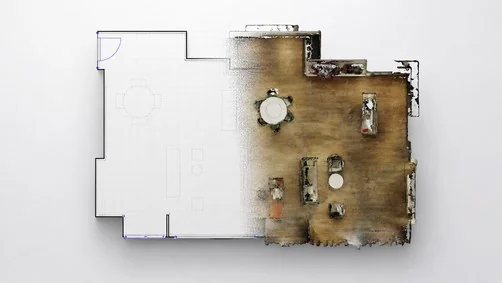

The floor plan for your drawing software, the laser dimensions for what has to be exact, and the 3D model to revisit when a question comes up afterwards.

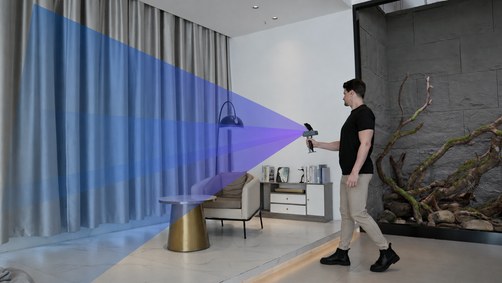

How it works: scan, measure, upload, deliver

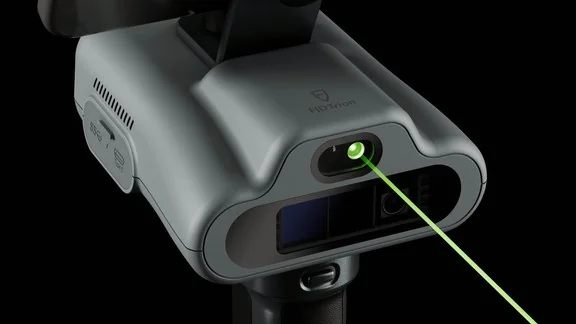

Built for the job, not borrowed from a phone. A phone's own LiDAR is enough for one room. C1 has its own LiDAR, camera and laser, 230,400 points per second and up to five hours of battery – the phone is the screen.
Who C1 is built for
Interior designers and architects
Leave the client meeting with a DXF floor plan and a 3D model of the room. Your layout is built on real dimensions, not a sketchpad and a tape measure.
Estate agents and property managers
Scan the apartment or premises during the photo visit and export the floor plan for the listing – without booking anyone else.

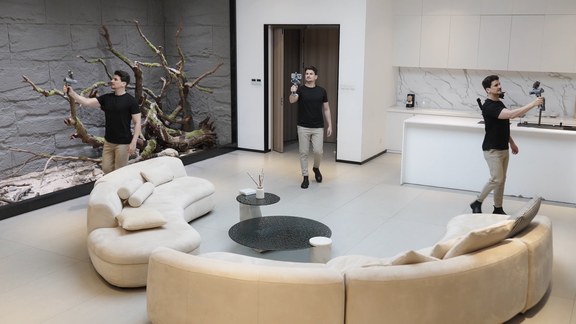

Furniture and office fit-out
Measure the client's space in one visit and export DXF to your planning tool. The missing dimension is found on site – not at delivery.
Read more about C1 for interiors on /trion-inredning.
When C1 is not enough
- Range is 6 m – made for rooms, apartments, offices and shops, not large halls, warehouses or outdoor areas.
- No GNSS/RTK receiver: measurements are relative, the point cloud gets no absolute coordinate.
- Requires a phone with the FJD Trion Creative app as the screen.
- Not waterproof – only the circuit board is coated. Operating temperature 0 to 40 °C.
Larger areas are jobs for Trion V4e Go, X1, P2 or the S2 series – same workflow, longer range. See the comparison table on /trion, or ask us which suits your premises.
Specifications
| Point rate | 230,400 points/s |
| Scanning range | 0.1–6 m at 10–90 % reflectivity |
| Relative accuracy (post-processed) | 1 cm |
| Depth field of view | 140° × 56° |
| RGB camera | 1280 × 1080, FOV 120° × 110°, max 10 fps |
| Depth technology | dToF, 940 nm, laser class 1 |
| Laser measurement, range | 0.03–60 m at 100 % reflectivity |
| Laser measurement, accuracy | ±3 mm (resolution 1 mm) |
| Laser measurement, ambient light | ≤ 1 kLux, laser class 2 |
| Dimensions (L × W × H) | 140 × 115 × 310 mm |
| Weight | 950 g |
| Battery life | Up to 5 h |
| Charging | 2 h, 20 V DC 1.5 A (30 W) |
| Moisture protection | Coated circuit board – the unit is not waterproof |
| Operating temperature | 0 to 40 °C |
| Storage temperature | −25 to 60 °C |
| Software | FJD Trion Creative (app) · FJD Trion Creative Portal |
| Output | DXF floor plan, laser dimensions, textured 3D model |
According to FJDynamics' product sheet for FJD Trion C1, 2026-09-01. Specifications may change.
FAQ about FJD Trion C1
Do I need my own phone?

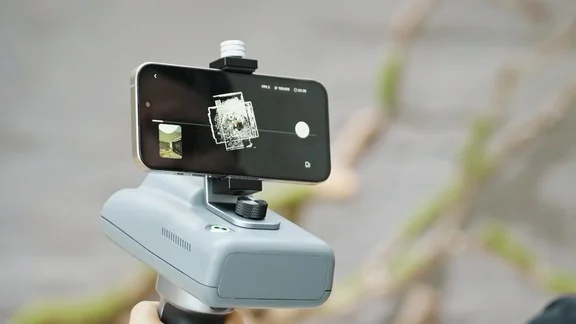

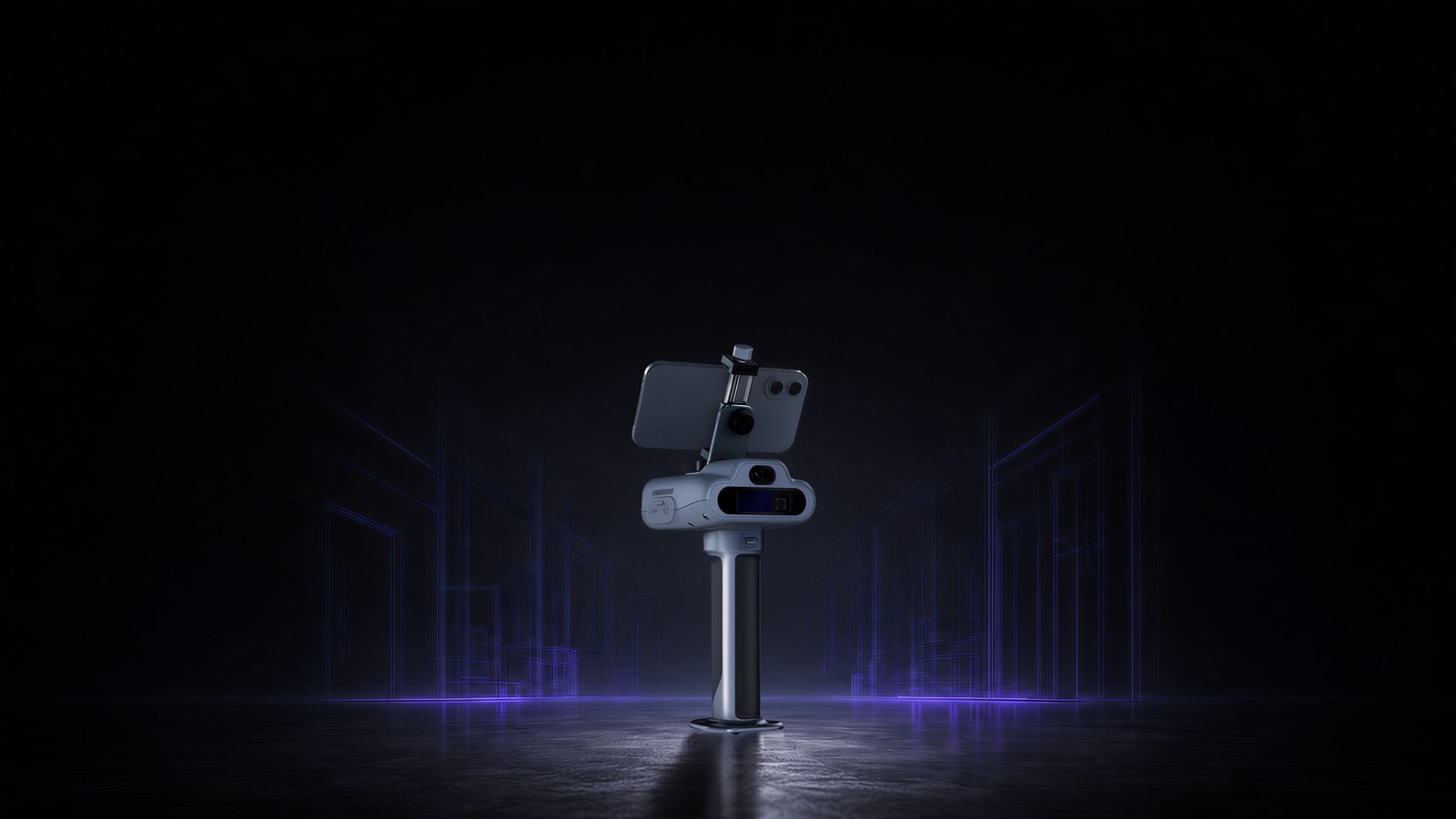

Yes. C1 has its own LiDAR, camera and laser, but the phone sits in the mount on top and acts as the screen – the scan is shown in the FJD Trion Creative app. No computer or external GNSS receiver needed.
What files do I get?
An editable DXF floor plan with walls, doors and windows plus a report, laser-measured dimensions and a textured 3D model.
How much area can I scan?
Up to 200 m² in as little as 3 minutes according to FJD. The battery lasts up to 5 hours and charges in 2.
How accurate is it?

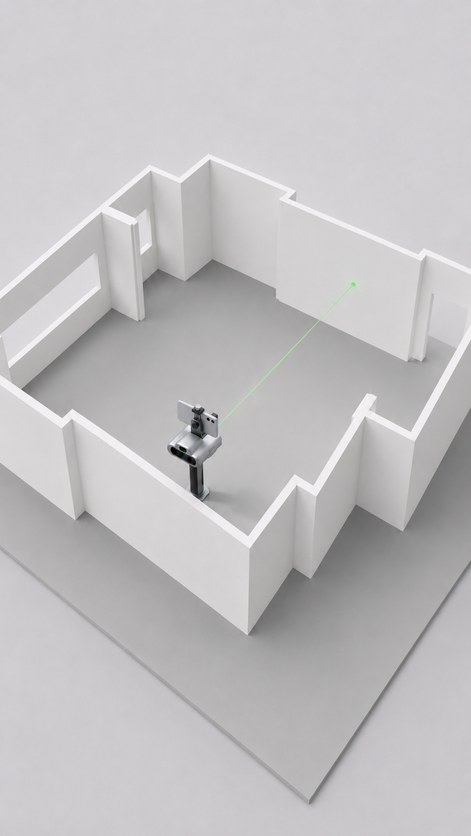

FJD states 1 cm relative accuracy after post-processing. Laser dimensions are ±3 mm with 1 mm resolution – use them for measurements that must be exact.
Does it work in warehouses or outdoors?
It is not made for that: range is 6 m and the unit is not waterproof. For larger areas and outdoors, V4e Go, X1, P2 or the S2 series fit better.
Where do I edit the drawing?

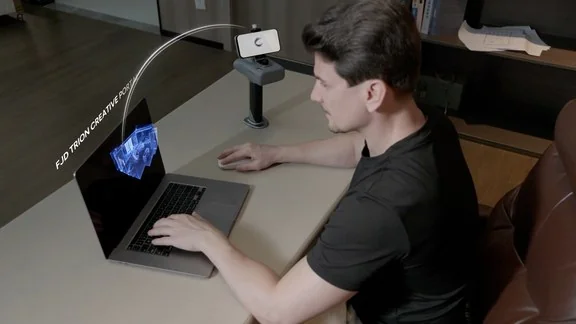

In FJD Trion Creative Portal in the browser: adjust walls, add doors and windows and export the finished floor plan, with the 3D model alongside.
Can I see C1 before buying?
Yes. Book a free demo and we will walk through the workflow from scan to finished DXF.
Who provides support?
RoboService is the FJDynamics dealer in Sweden and provides support in Swedish from RoboCenter in Svedala.
