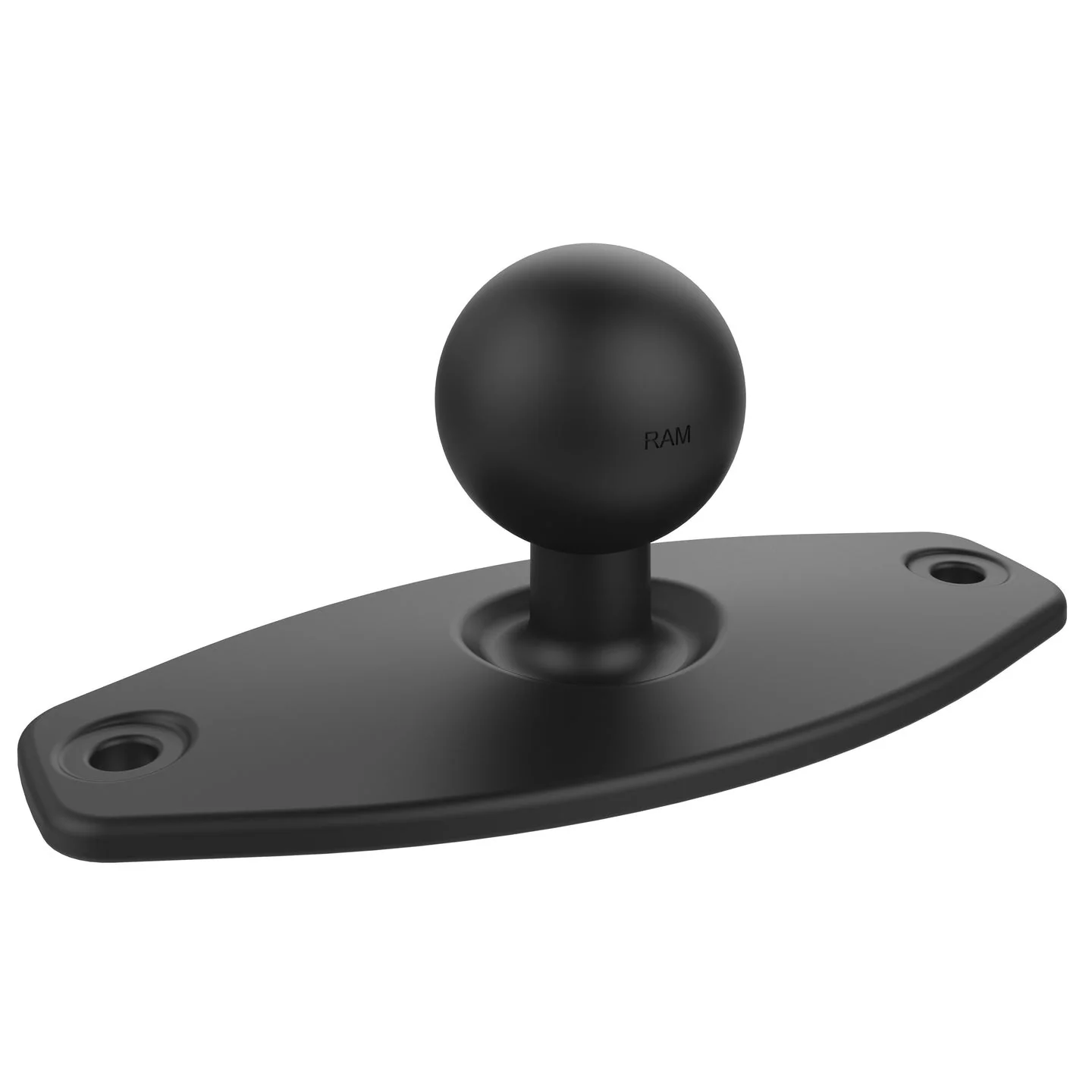

RAM Ball Adapter for John Deere
A precision-machined connection point that bolts straight onto the back of your John Deere GS2600 or GS2630 display, turning it into a RAM-mountable device with a 1.5" C-size ball.
Why this matters for your operation
John Deere's GS2600 and GS2630 displays do not come with a RAM ball out of the box. This adapter is the missing link: once it is bolted to the back of the display, the display can be positioned on any C-size RAM arm and base, adjusted to the exact angle the operator wants, and locked in place by hand -- no more displays wedged into a factory bracket that only tilts one way.
Features
- Compatible with GS2600 & GS2630 John Deere displays
- Included C size 1.5" RAM rubber ball allows connection to any C size RAM double socket arm; ball and socket technology allows near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
How RAM's modular system works
Every RAM mount is built from up to three parts that click together. A base clamps, bolts, or straps onto the vehicle -- a rail, a roll bar, a dash, or a device's own housing. An arm connects two RAM balls together and can be locked at any angle, so once mounted you can tilt, rotate, and reposition the device freely, then lock it firmly in place by hand. A cradle or holder grips the specific device -- tablet, phone, or GPS unit.
Not every product includes all three parts -- some are just the base, some bundle a cradle, some are a complete kit. Where that is the case, this page says so plainly, so you know exactly what you are getting and what, if anything, you would need to add.
The ball size determines what it can carry
RAM uses five ball sizes, each rated for a different weight and duty class. B Size (part numbers starting RAM-B-...) is RAM's most common size, standard duty -- what RAM recommends for phones, GPS units, and light tablets in normal use. C Size (plain RAM-... part numbers, no letter prefix) is heavy duty -- used for larger tablets, handheld computers, and anything mounted somewhere that gets a lot of vibration or shock, exactly the case in a tractor, ATV, or UTV cab. D and E Size are reserved for large monitors and specialist equipment, rarely needed outside those cases.
Rule of thumb: if the mount will live somewhere that is frequently jostled, vibrated, or under constant load -- an off-road vehicle in a field -- RAM recommends stepping up to the larger ball size (C or D) for extra stability, even if a lighter B-Size mount would technically hold the device's weight.
No tools required, on purpose
RAM arms are designed to be tightened by hand only -- there is no official torque spec, because the ball-and-socket joint is meant to be adjustable in the field without a wrench. If hand-tightening does not hold your device firmly, that is usually a sign the ball size is undersized for the device -- sizing up solves it, rather than over-tightening.
Aluminum or composite -- both built for the outdoors
RAM mounts are made from marine-grade aluminum or high-strength composite, depending on the product; both carry a lifetime warranty and similar weight ratings. Aluminum's powder-coat finish handles rough vibration and shock slightly better; composite has no paint to chip and is often preferred in high-corrosion or salt-air environments. Neither choice is worse -- it is a trade-off between finish and environment.
Important: this is a component, not a complete mount
The RAM-270U is the connection point on the display side only -- it is the equivalent of "the base" in RAM's three-part system, bolted to the John Deere display itself. To finish a working mount you still need a C-size double socket arm and a base on the cab side (roll bar, dash, or console mount) to connect to. The mounting hardware for the display side is not included either -- it should have come with your John Deere display.
Not sure which arm and cab-side base you need for your specific tractor? Contact RoboService and we will help you specify a complete kit.
Specifications
| Ball size | C Size (1.5") |
| Weight capacity, standard use | 4 lbs (approx. 1.8 kg) |
| Weight capacity, heavy-duty use | 3 lbs (approx. 1.4 kg) |
| Materials | Marine-grade aluminum |
| Packaging | Poly bag |
| Weight | 0.42 lb (approx. 0.19 kg) |
| Compatibility | John Deere GS2600 & GS2630 displays |
Frequently asked questions
Does this come with the screws to mount it to my GS2600/GS2630?
No. The hardware needed to attach the ball to the display is not included -- it should be provided with your John Deere display. The mounting holes are 1/4" in diameter, so any screw or bolt within that size will fit.
What is the bolt hole spacing?
The center-to-center spacing on the bolt holes is approximately 4.7".
Do I need anything else to actually mount my display?
Yes. This adapter only gives the display a RAM ball -- you still need a C-size double socket arm and a base that clamps or bolts to your cab (roll bar, dash, or console) to complete the mount. Contact RoboService if you want help specifying the full kit.
Why C-size and not the smaller B-size?
C-size is RAM's heavy-duty rating, intended for larger displays and equipment that will see constant vibration -- exactly what a tractor cab delivers. It gives more stability than B-size, even though the GS2600/GS2630 display itself is not especially heavy.
Do I need tools to adjust the mount once it is installed?
No. Once the full mount (arm + base + this adapter) is assembled, the ball-and-socket joint is designed to be loosened and re-locked by hand, so the operator can reposition the display without a wrench.
Is there a warranty?
Yes, RAM backs this adapter with a lifetime warranty against manufacturing defects.
